E04 series

Here you can configure your e-chain system? individually. All entries and changes are taking over to the part list which is situated at the end of the page.

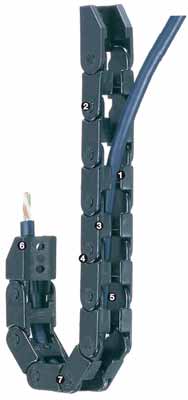

Series E 04 - Chain must be filled along the outer radius

1. Very easy to fill - ideal for applications with pre-assembled connectors
2. Small pitch for quiet, smooth running
3. For high acceleration
4. Limited torsional movements possible
5. Smooth inner contour
6. Mounting brackets available
7. "Pushbutton principle" holds links together

Available inner width Bi: 7 mm
Available bend radii R: 15 to 48 mm
Pitch: 16.7 mm/link = 60 links / m

Series E04 is suitable for the following types of applications:

Vertical: Hanging applications, standing applications
Horizontal: Unsupported applications �� 0.55 m
Circular movement: Rotating applications possible, may require machining (machining rework is always required from rotation angles of 180��)

When to use Series E04

Small igus? e-chain? - interior dimensions 7 x 7mm
When a small e-chain? with 7.0mminner height and small bend radiiis required
For unsupported lengths up to 0.55m and fill weights up to 0.35kg/m
When easy filling without opening and closing of lids is required
If quiet running is required
If a light and cost-effective e-chain? is required
For high acceleration

When not to use Series E04

For applications with particularly high loads and long unsupported lengths
Series 06 E2 micro
When a non-openable e-chain? is required
Series 04 E2 micro

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
* The required clearance height is HF = H + 10 mm (at 0.1 kg/m fill weight), which should be observed in all types of applications. Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.

Gap dimension on the opening mechanism: 1-2.5 mm for each width
Except for E04.07.015.0.S with 0.8 mm width
A= moving end, B= fixed end
Pitch: 16.7 mm
Chain links per m: 60
Travel: S
Chain length = S/2 + K

Unsupported length

The unsupported length versus fill weight X axis: Unsupported length in m FLB/FLG Y axis: Fill weight in kg/m Lower scale: Travel S in m FLB = Unsupported with permissible sag FLG = Unsupported with straight upper run

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain? Expert call Service life calculation PDF file Ask the product expert

Designing with igus?

Quicksnap

Quickfix

1 width and 5 bend radii

Assembly instructions

Other installation types

Technical specifications

Strain reliefs

Mounting brackets

One-piece plastic

unassembled	assembled

One-piece mounting bracket - secure fit

Corrosion-free

Can be fabricated


:
Part No. :
B [mm]:
Number of teeth :

Part List

Personal contact

GToB Imprint General notes Data protection declaration

hanging (max.) [m]	10
standing (max.) [m]	2
max. vertical, long travels [m]	10

Material of chain links	igumid NB
Min. permissible temperature [��C]	-40
Max. permissible temperature [��C]	80
Gliding speed (max.) [m/s]	3
Max. gliding speed [m/s2]	10
Speed FLG max. [m/s]	20
Speed FLG max. [m/s2]	200
Speed FLB max. [m/s]	3
Speed FLB max. [m/s2]	6
Flammability class of chain link	VDE 0304 IIC UL94 V2
