E03 series

Here you can configure your e-chain system? individually. All entries and changes are taking over to the part list which is situated at the end of the page.

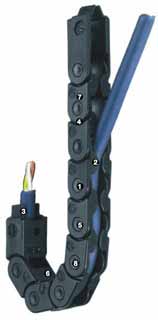

Series E03 - Chain to be filled along the outer radius

1. Smallest igus? e-chain? - Interior dimensions 5 x 5 mm
2. Very easy to fill - ideal for applications with pre-assembled connectors, opening and closing the lids are no longer necessary
3. Mounting bracket with integrated strain relief 4. Small pitch for quiet, smooth run
5. Very low weight
6. Very cost-effective price
7. "Push button principle" keeps chain links together

Series E03 is suitable for the following types of applications:

Vertical: Hanging applications, standing applications
Horizontal: Unsupported applications �� 0.4 m
Circular movement: Rotating applications possible, may require machining (machining rework is always required from rotation angles of 180��)

When to use Series E03

Smallest igus? e-chain? - Interior dimensions 5 x 5mm
When a very small e-chain? with 5.0mm inner height and smallest bend radii is required
For inner widths up to 10mm
For unsupported lengths up to 0.4m and fill weights up to 0.24kg/m
When easy filling without opening and closing of lids is required
If quiet running is required
If a light and cost-effective e-chain? is required

When not to use Series E03

For applications with particularly high loads and long unsupported lengths
Series 04 E2 micro
When a non-openable e-chain? is required
Series 03 E2 micro

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
* The required clearance height is HF = H + 10 mm (at 0.1 kg/m fill weight), which should be observed in all types of applications. Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.

Gap dimension on the opening mechanism: 1-2 mm width for each gap
A= moving end
B= fixed end
Pitch: 10 mm
Chain links per m: 100
Travel: S
Chain length:S/2 + K

Unsupported length

The unsupported length depends on fill weight
X axis: unsupported length in m FLB/FLG
Y axis: fill weight in kg/m
Lower scale: travel S in m
FLB = unsupported with permissible sag
FLG = unsupported with straight upper run

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain? Expert call Service life calculation PDF file Ask the product expert

Designing with igus?

Series E 03 mounting bracket

Adapter plate

3 widths and 5 bend radii

Assembly instructions

Technical specifications

Strain reliefs

Mounting brackets

Plastic - one-sided

unassembled	assembled

B = Mounting bracket
C = Adapter plate

One-piece mounting bracket - secure fit

Corrosion-free

Can be fabricated

Mounting surfaces, fits inside/outside

Fast attachment using the adapter plate


:
Part No. :
B [mm]:

Part No. :

B [mm]:

Part List

Personal contact

GToB Imprint General notes Data protection declaration
