Series R68 New

Here you can configure your e-chain system? individually. All entries and changes are taking over to the part list which is situated at the end of the page.

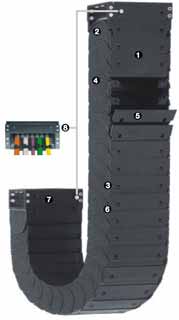

Series R68 New 每 Tube, opens along the outer radius

1. Excellent protection for cables and hoses, from hot swarf as well
2. Large pins, high strength
3. Smooth chip-repellent outer contour
4. Small pitch for quiet, smooth running
5. Lids can be removed along the outer radius
6. Fully enclosed
7. KMA mounting brackets with option to fasten from any side
8. Integrated strain relief is available specially for e-tubes

Available inner widths Bi: 50 to 250mm
Available bend radii R: 100 to 300mm
Pitch: 36mm/link = 28 links/m

R68 Series is suitable for the following types of applications:

Vertical: Hanging applications, standing applications
Horizontal: Unsupported applications ≒ 2.5 m, gliding applications ≒ 100 m
Circular movement: Rotating applications possible, may require machining (machining rework is always required from rotation angles of 180～)

When to use Series R68 New "E2 tubes"

If a stong e-tube with small pitch for low-noise running and 45mm interior height is required
If an inner width up to 250mm is required
For unsupported lengths up to 2.5m and fill weights up to 10kg/m
For high requirements of chip tightness

When not to use Series R68 New "E2 tubes"

If a particularly cost-effective solution is required
Series R117/R118
When no swarf protection is required
Series 2400/2500 E2/000
Extremely swarf-resistant e-tubes
System RX, Series RX32

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
H2 [mm]:
D2 :
K2 [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
* The required clearance height is HF = H + 40 mm (at 2.5 kg/m fill weight), which should be observed in all types of applications. Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.

A=moving end, B=fixed end
Pitch: 36 mm
Chain links per m: 28
Travel: S
Tube length = S/2 + K

Unsupported length

The unsupported length depends on fill weight
X axis: unsupported length in m FLB/FLG
Y axis: fill weight in kg/m
Lower scale: travel S in m
FLB = unsupported with permissible sag
FLG = unsupported with straight upper run

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain? Expert call Service life calculation PDF file Ask the product expert

Designing with igus?

3 interior separation options

3 mounting bracket variants

Available with quick flange

10 widths and 8 bend radii

Design specificationFurther information on "unsupported application"

Design specificationFurther information on "gliding application"

Assembly instructions

Other installation types

Technical specifications

Strain reliefs

Interior separation

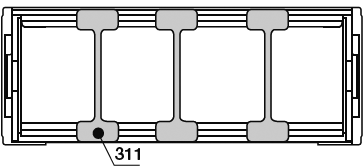

Option 1. Separators

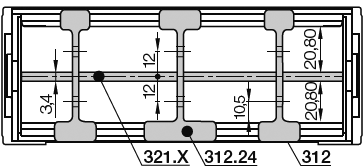

Option 2: Full-width shelves

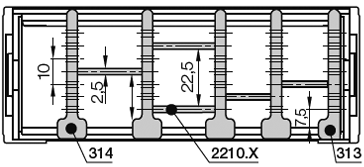

Option 3: Shelves

Product range


unassembled	assembled
Per . chain link

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator


Part No. :

hanging (max.) [m]	60
standing (max.) [m]	4
max. vertical, long travels [m]	100

Material of chain links	igumid G
Min. permissible temperature [～C]	-40
Max. permissible temperature [～C]	120
Gliding speed (max.) [m/s]	3
Max. gliding speed [m/s2]	10
Speed FLG max. [m/s]	10
Speed FLG max. [m/s2]	100
Speed FLB max. [m/s]	3
Speed FLB max. [m/s2]	6
Flammability class of chain link	VDE 0304 IIC UL94 HB


:
Part No. :
A [mm]:
B [mm]:
C [mm]:
D [mm]:
E [mm]:
F [mm]:
G [mm]:
H [mm]:
