Series R09

Here you can configure your e-chain system? individually. All entries and changes are taking over to the part list which is situated at the end of the page.

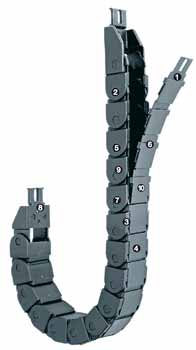

Series R09 - Tube, zip-open along the outer radius

1. Quick opening and closing of lids with zipper band
2. Small pitch for quiet, smooth running
3. Protection against dirt and swarf
4. Award-winning design
5. Light and strong
6. Zipper can be separated andjoined at any chain link
7. For high accelerations
8. Mounting bracket with integrated strain relief possible
9. Small energy tube that can be easily opened
10. Also available as Zipper e-chain?
Serise 09

R09 Series is suitable for the following types of applications:

Vertical: Hanging applications, standing applications
Horizontal: Unsupported applications �� 1 m
Circular movement: Rotating application possible, if necessary with reworking (from 180�� rotation angle mechanical reworking is always necessary)

When to use Series R09 energy tubes

If Quick opening is required
When chip protection is required
If prefabricated cables must be fitted
If attractive design is required

When not to use Series R09 energy tubes

If opening the crossbars is not necessary
Series 08 E2 micro
When you want to fill without opening lids
Series E08 easy chain?

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
* The required clearance height is HF = H + 15 mm (at 0.3 kg/m fill weight), which should be observed in all types of applications. Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.

A=moving end
B=fixed end
Pitch: 20 mm
Chain links per m: 50
Tube length= S/2 + K

Unsupported length

The unsupported length depends on fill weight
X axis: unsupported length in m FLB/FLG
Y axis: fill weight in kg/m
Lower scale: travel S in m
FLB = unsupported with permissible sag
FLG = unsupported with straight upper run

Reference example A:
fill weight = 0.5 [kg/m]
unsupported length FLB = 0.63 m
travel = 1.26 m

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain? Expert call Service life calculation PDF file Ask the product expert

Designing with igus?

Mounting bracket with and without clamp

Small energy tube with zipper fastener

6 widths and 3 bend radii

Quicksnap: The entire unit can be moved manually

Quickfix: Mounting bracket with anchor

Design specificationFurther information on "unsupported application"

Design specificationFurther information on "gliding application"

Assembly instructions

Technical specifications

Strain reliefs

Mounting brackets

Plastic, one-piece, locking

unassembled	assembled

080.06.12 - 080.20.12: Only middle holes

One-piece mounting bracket - secure fit

Corrosion-free

Can be fabricated

For long travel applications

Mounting surfaces, fits inside/outside

Available with tiewrap plate


:
Part No. :
A [mm]:
B [mm]:
Number of teeth :

Part List

Personal contact

GToB Imprint General notes Data protection declaration

Material of chain links	igumid G
Min. permissible temperature [��C]	-40
Max. permissible temperature [��C]	120
Gliding speed (max.) [m/s]	10
Max. gliding speed [m/s2]	50
Speed FLG max. [m/s]	20
Speed FLG max. [m/s2]	200
Speed FLB max. [m/s]	3
Speed FLB max. [m/s2]	6
Flammability class of chain link	VDE 0304 IIC UL94 HB
