Series 1640

Here you can configure your e-chain system? individually. All entries and changes are taking over to the part list which is situated at the end of the page.

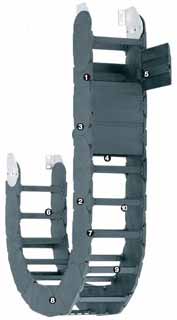

Series 1640 - chain, openable from both sides with crossbars every link

1. High stability due to undercut design
2. Inner/outer link principle
3. Lateral gliding surfaces for side-mounted operation
4. Closed and open areas can be combined
5. Lid for e-tube can be swivelled and removed
6. Crossbars/shelves can be removed
7. Dirt-repelling outer contour
8. Alternatively available with reverse bend radii/bend radii on both sides RBR!
9. Wide plastic crossbars - cable-friendly
10. Modular interior separation

Available inner widths Bi: 50 to 600 mm
Available bending radii R: 200 to 600 mm
Pitch: 143 mm per link = 7 links/m

Series 1640 is suitable for the following types of applications:

Vertical: Hanging applications �� 100m, standing applications �� 5m
Horizontal: Unsupported applications �� 4.5m, gliding applications �� 400m
Circular movement: Rotating applications possible, may require machining (machining rework is always required from rotation angles of 180��)

When to use Series 1640

When a robust e-chain? with inner height of 112mm is required (e-tube 108mm inner height)
If an inner width up to 600mm is required
For unsupported lengths up to 4.5m and fill weights up to 50kg/m
For travel lengths up to 400m
Also suitable for side-mounted, standing and hanging applications
Many modular options and accessories available
Good ratio of inner to outer dimension

When not to use Series 1640

If greater stability is required
Series E4.112

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
��CL [mm]:
H2 [mm]:
D2 :
K2 [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
* The required clearance height is HF = H + 100 mm (at 2 kg/m fill weight), which should be observed in all types of applications. Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.

A=moving end, B=fixed end
Pitch: 143mm per link
Chain links per m: 7
Travel: S
Chain length = S/2 + K

Unsupported length

The unsupported length depends on fill weight
X axis: unsupported length in m FLB/FLG
Y axis: fill weight in kg/m
Lower scale: travel S in m
FLB = unsupported with permissible sag
FLG = unsupported with straight upper run

Reference example A:
fill weight = 6 [kg/m]
unsupported length FLB = 4.0 m
travel = 8.0 m

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain? Expert call Service life calculation PDF file Ask the product expert

Designing with igus?

Quiet model

Modular interior separation

41 widths and 9 bend radii

e-chain? opener tools for easy opening and closing of E4 series igus? e-chains?

Design specificationFurther information on "unsupported application"

Design specificationFurther information on "gliding application"

Assembly instructions

Other installation types

Technical specifications

Strain reliefs

Interior separation

Option 1: Standard

Option 2: Standard

Product range


unassembled	assembled
Per . chain link

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator


Part No. :

hanging (max.) [m]	100
standing (max.) [m]	5
max. side-mounted, unsupported [m]	2
max. vertical, long travels [m]	400
circular	with reworking

Material of chain links	igumid G
Min. permissible temperature [��C]	-40
Max. permissible temperature [��C]	120
Gliding speed (max.) [m/s]	10
Max. gliding speed [m/s2]	50
Speed FLG max. [m/s]	20
Speed FLG max. [m/s2]	200
Speed FLB max. [m/s]	3
Speed FLB max. [m/s2]	6
Flammability class of chain link	VDE 0304 IIC UL94 HB


:
Part No. :
A [mm]:
B [mm]:
C [mm]:
D [mm]:
E [mm]:
F [mm]:
G [mm]:
H [mm]:
I [mm]:
K [mm]:
