Series R4.56

Here you can configure your e-chain system? individually. All entries and changes are taking over to the part list which is situated at the end of the page.

Series R4.56 - tube, openable from both sides

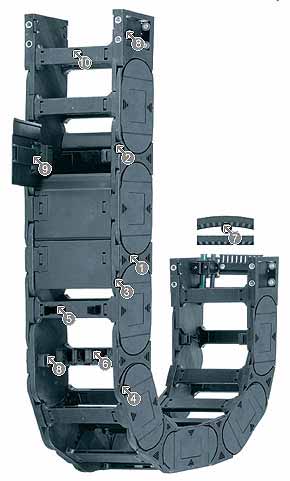

1. Straight running due to inner/outer link design
2. Low-noise running due to built-in brake in the stop-dogs
3. The undercut design ensures very high rigidity and load capacity
4. 15% more tensile strength (compared to the best old E4 series), better unsupported length due to improved vertical stop-dogs
5. Openable crossbar available 450.X. Q
6. New interior separation system increases the service life of your cables by up to a factor of 4
7. "No camber" version possible simply by rotating the outer link; no rework required
8. Crossbars can be removed from both sides
9. Lid for e-tube can be opened and removed
10. Wide plastic crossbars 每 cable-friendly

Available inner widths Bi: 75 to 462 mm
Available bending radii R: 150 to 500 mm
Pitch: 91 mm per link = 11 links/m

R4.56 Series is suitable for the following types of applications:

Vertical: Hanging applications ≒ 100m, standing applications ≒ 6m
Horizontal: Unsupported applications ≒ 5m, gliding applications ≒ 400m
Circular movement: Rotating applications possible, may require machining (machining rework is always required from rotation angles of 180～)

When to use Series R4.56

When a robust e-chain?/e-tube with 56mm inner height is required
If an inner width up to 600mm is required
For unsupported lengths up to 5.0m and fill weights up to 62kg/m
For travel lengths up to 400m
Also suitable for side-mounted, standing and hanging applications
Many modular options and accessories available

When not to use Series R4.56

When e-chain? is to be used in cleanrooms (ISO Class 1)
Series E6.52
When an extremely low vibration e-chain? is required
Series E6.52
If a compromise for more cost-effective price/stability can be made
Series 14040 , Series 14140 , Series 18840

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
忖CL [mm]:
H2 [mm]:
D2 :
K2 [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
* The required clearance height is HF = H + 50 mm (at 3 kg/m fill weight), which should be observed in all types of applications. Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.

A=moving end, B=fixed end
Pitch: 91mm per link
Chain links per m: 11
Travel: S
Chain length = S/2 + K

Unsupported length

The unsupported length depends on fill weight
X axis: unsupported length in m FLB/FLG
Y axis: fill weight in kg/m
Lower scale: travel S in m
FLB = unsupported with permissible sag
FLG = unsupported with straight upper run

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain? Expert call Service life calculation PDF file Ask the product expert

Designing with igus?

Quiet model

2 mounting bracket variants

Variable widths through extension links

Modular interior separation

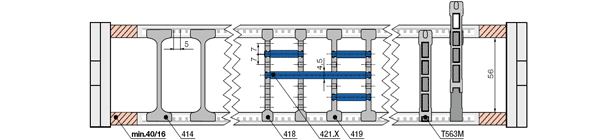

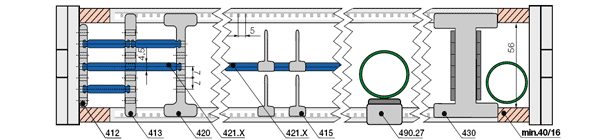

11 widths and 10 bend radii

Design specificationFurther information on "unsupported application"

Design specificationFurther information on "gliding application"

Assembly instructions

Other installation types

Technical specifications

Strain reliefs

Interior separation

Option 1: standard

Option 2: standard

Option 3: Optional

Option 4: Optional

Product range


unassembled	assembled
Per . chain link

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator


Part No. :

hanging (max.) [m]	100
standing (max.) [m]	6
max. side-mounted, unsupported [m]	2.5
max. vertical, long travels [m]	400
circular	with reworking

Material of chain links	igumid G
Min. permissible temperature [～C]	-40
Max. permissible temperature [～C]	120
Gliding speed (max.) [m/s]	10
Max. gliding speed [m/s2]	50
Speed FLG max. [m/s]	20
Speed FLG max. [m/s2]	200
Speed FLB max. [m/s]	3
Speed FLB max. [m/s2]	6
Flammability class of chain link	VDE 0304 IIC UL94 HB


Part No. :
A [mm]:
B [mm]:
C [mm]:
D [mm]:
E [mm]:
F [mm]:
G [mm]:
H [mm]:
