Adapter kit for gantry setup

Simple and fast multi-axes gantry setup

For lead screw and toothed belt axes

energy chain assembly preparation

Anodised aluminium

Space and weight reducing

Mounting of y-axis on 2 x-axes

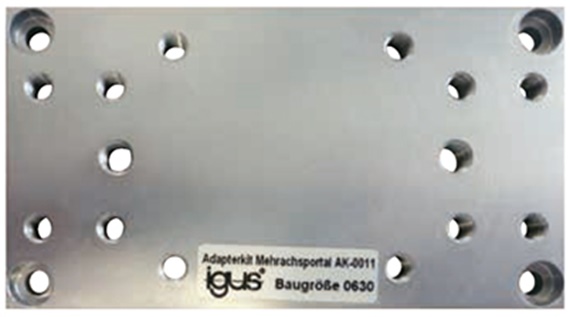

Adapter kit for gantry setup
Part No. x-axis y-axis Function gantry setup
AK-0011 ZLW-0630, 100 mm carriage ZLW-0630, ZLW-1040 Assembly Y axis
AK-0012 ZLW-1040, 100 mm carriage ZLW-0630, ZLW-1040 Assembly Y axis
AK-0013 ZLW-1040, 150 mm carriage ZLW-0630, ZLW-1040, ZLW-1080 Assembly Y axis
AK-0014 ZLW-1660, 250 mm carriage ZLW-1040, ZLW-1080 Assembly Y axis
AK-0024 ZLW-1040, 200 mm carriage ZLW-0630, ZLW-1040, ZLW-1080 Assembly Y axis
AK-0025 ZLW-1080, 150 mm carriage ZLW-0630, ZLW-1040, GRW-0630 Assembly Y axis

Product range

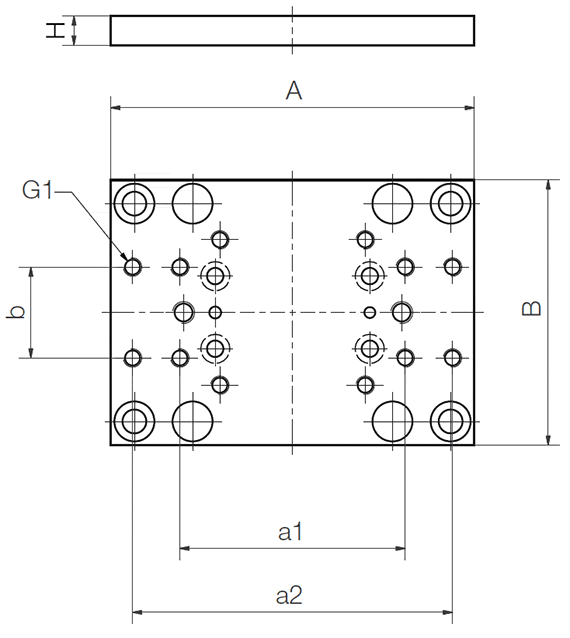

Order number A
-0,3		 B
-0,3		 G1 H a1 a2
+0,2 		b
drylin® drive technology accessories: adapter kit for gantry structure AK-0011 100 54 M5 13 62 88 25 2.196.632 VND drylin® drive technology accessories: adapter kit for gantry structure
drylin® drive technology accessories: adapter kit for gantry structure AK-0013 150 73 M5 8 112 138 25 3.676.251 VND drylin® drive technology accessories: adapter kit for gantry structure
drylin® drive technology accessories: adapter kit for gantry structure AK-0014 250 104 M5 10 0 232 35 Theo yêu cầu drylin® drive technology accessories: adapter kit for gantry structure
drylin® drive technology accessories: adapter kit for gantry structure AK-0024 200 73 M5 8 162 188 25 4.026.372 VND drylin® drive technology accessories: adapter kit for gantry structure
drylin® drive technology accessories: adapter kit for gantry structure AK-0025 150 107 M5 8 112 138 25 4.026.372 VND drylin® drive technology accessories: adapter kit for gantry structure
drylin® drive technology accessories: adapter kit for gantry structure AK-0012 100 73 M5 8 62 88 25 2.526.969 VND drylin® drive technology accessories: adapter kit for gantry structure
Thêm về phần đã lựa chọn:
drylin® drive technology accessories: adapter kit for gantry structure 3D CAD
drylin® drive technology accessories: adapter kit for gantry structure Yêu cầu hàng mẫu miễn phí
drylin® drive technology accessories: adapter kit for gantry structure PDF
drylin® drive technology accessories: adapter kit for gantry structure Yêu cầu báo giá
drylin® drive technology accessories: adapter kit for gantry structure myCatalog

More information:

Xuất hàng trong vòng 10 - 14 ngày làm việc
