drylin® N - Low profile linear guide system NK-02-40

Version 02 with threaded hole:

Order no. Max. rail lengths a C4 A3 C5=C6 h h1 K1* ly lz Weight of rail Price / m
  [L max.]       Min. max.       [mm2] [mm2] [g/m]
drylin® N - Low profile linear guide system NK-02-40 NS-01-40 3000 40 60 0 20 20/49,5 8,7 1,3 M4 26400 970 450 1.253.808 VND drylin® N - Low profile linear guide system NK-02-40
drylin® N - Low profile linear guide system NK-02-40 NS-01-40-UNGEBOHRT 3000 40 0 0 0 8,7 1,3 26400 970 450 1.122.317 VND drylin® N - Low profile linear guide system NK-02-40
drylin® N - Low profile linear guide system NK-02-40 NS-01-40-AR 3000 40 60 0 20 20/49,5 8,7 1,3 M4 26400 970 450 1.441.899 VND drylin® N - Low profile linear guide system NK-02-40
Thêm về phần đã lựa chọn:
drylin® N - Low profile linear guide system NK-02-40 3D CAD
drylin® N - Low profile linear guide system NK-02-40 Yêu cầu hàng mẫu miễn phí
drylin® N - Low profile linear guide system NK-02-40 PDF
drylin® N - Low profile linear guide system NK-02-40 Yêu cầu báo giá
drylin® N - Low profile linear guide system NK-02-40 myCatalog

For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head

Version 02 with threaded hole:

Order no. Designation Weight of carriage
    [g]
drylin® N - Low profile linear guide system NK-02-40 NW-02-40 Carriage clipped on, fixed bearing 30 257.643 VND drylin® N - Low profile linear guide system NK-02-40
drylin® N - Low profile linear guide system NK-02-40 NW-02-40-LLY Carriage clipped on, floating bearing y-direction 30 257.384 VND drylin® N - Low profile linear guide system NK-02-40
drylin® N - Low profile linear guide system NK-02-40 NW-02-40-LLZ Carriage clipped on, floating bearing z-direction 30 257.384 VND drylin® N - Low profile linear guide system NK-02-40
drylin® N - Low profile linear guide system NK-02-40 NW-02-40-LLYZ Carriage clipped on, floating bearing y and z-direction 30 257.384 VND drylin® N - Low profile linear guide system NK-02-40
Thêm về phần đã lựa chọn:
drylin® N - Low profile linear guide system NK-02-40 3D CAD
drylin® N - Low profile linear guide system NK-02-40 Yêu cầu hàng mẫu miễn phí
drylin® N - Low profile linear guide system NK-02-40 PDF
drylin® N - Low profile linear guide system NK-02-40 Yêu cầu báo giá
drylin® N - Low profile linear guide system NK-02-40 myCatalog

Version 02: Dimensions [mm] - guide carriages

Part. No. H A C C1 C2 A2 H2 K2 K3 K4 Spmin. DpØmin. Weight
  ±0,35                       [g/m]
drylin® N - Low profile linear guide system NK-02-40 NW-02-40 9,5 23 50 40 20 0 0 M4 5 6,5 30
drylin® N - Low profile linear guide system NK-02-40 NW-02-40-LLY 9,5 23 50 40 20 0 0 M4 5 6,5 30
drylin® N - Low profile linear guide system NK-02-40 NW-02-40-LLZ 9,5 23 50 40 20 0 0 M4 5 6,5 30
drylin® N - Low profile linear guide system NK-02-40 NW-02-40-LLYZ 9,5 23 50 40 20 0 0 M4 5 6,5 30
Thêm về phần đã lựa chọn:
drylin® N - Low profile linear guide system NK-02-40 3D CAD
drylin® N - Low profile linear guide system NK-02-40 Yêu cầu hàng mẫu miễn phí
drylin® N - Low profile linear guide system NK-02-40 PDF
drylin® N - Low profile linear guide system NK-02-40 Yêu cầu báo giá
drylin® N - Low profile linear guide system NK-02-40 myCatalog

Version 12 with threaded hole:

Order no. Designation Weight of carriage
    [g]
drylin® N - Low profile linear guide system NK-02-40 NW-12-40 Moulded carriage 30 257.643 VND drylin® N - Low profile linear guide system NK-02-40
drylin® N - Low profile linear guide system NK-02-40 NW-12-40-LLY Moulded carriage, floating bearing y-direction 30 257.384 VND drylin® N - Low profile linear guide system NK-02-40
drylin® N - Low profile linear guide system NK-02-40 NW-12-40-LLZ Moulded carriage, floating bearing z-direction 30 257.384 VND drylin® N - Low profile linear guide system NK-02-40
drylin® N - Low profile linear guide system NK-02-40 NW-12-40-LLYZ Moulded carriage, floating bearing y und z-direction 30 257.643 VND drylin® N - Low profile linear guide system NK-02-40
drylin® N - Low profile linear guide system NK-02-40 NW-12-27 Moulded carriage 12,5 156.566 VND drylin® N - Low profile linear guide system NK-02-40
drylin® N - Low profile linear guide system NK-02-40 NW-12-27-80 Carriage 25 299.794 VND drylin® N - Low profile linear guide system NK-02-40
Thêm về phần đã lựa chọn:
drylin® N - Low profile linear guide system NK-02-40 3D CAD
drylin® N - Low profile linear guide system NK-02-40 Yêu cầu hàng mẫu miễn phí
drylin® N - Low profile linear guide system NK-02-40 PDF
drylin® N - Low profile linear guide system NK-02-40 Yêu cầu báo giá
drylin® N - Low profile linear guide system NK-02-40 myCatalog

Version 12: Dimensions [mm] - guide carriages

Part. No. H A C C1 C2 A2 H2 K2 K3 K4 Spmin. DpØmin. Weight
  ±0,35                       [g/m]
drylin® N - Low profile linear guide system NK-02-40 NW-12-40 9,5 23 52 40 20 0 0 M4 5 6,5 30
drylin® N - Low profile linear guide system NK-02-40 NW-12-40-LLY 9,5 23 52 40 20 0 0 M4 5 6,5 30
drylin® N - Low profile linear guide system NK-02-40 NW-12-40-LLZ 9,5 23 52 40 20 0 0 M4 5 6,5 30
drylin® N - Low profile linear guide system NK-02-40 NW-12-40-LLYZ 9,5 23 52 40 20 0 0 M4 5 6,5 30
drylin® N - Low profile linear guide system NK-02-40 NW-12-27 9,5 14 34 30 20 0 0 M4 5 6,5 12,5
drylin® N - Low profile linear guide system NK-02-40 NW-12-27-80 0 14 80 76 60 0 1,5 M4 5 6,5 25
Thêm về phần đã lựa chọn:
drylin® N - Low profile linear guide system NK-02-40 3D CAD
drylin® N - Low profile linear guide system NK-02-40 Yêu cầu hàng mẫu miễn phí
drylin® N - Low profile linear guide system NK-02-40 PDF
drylin® N - Low profile linear guide system NK-02-40 Yêu cầu báo giá
drylin® N - Low profile linear guide system NK-02-40 myCatalog

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriagel
3. Entry of the rail length in mm
4. Selection of the carriage options
5.

Hint:

Detailed information can be found in the drawings and tables above, as well as in the below-mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.
1

no floating bearing

2

Floating bearing in z-direction

3

Floating bearing in y-direction

4

Floating bearing in yz-direction

drylin® NK – complete set

Step 1

Enter the required number of carriages.

technical drawing
No. of carriages:
Carriage length in version NW-12-40: 52 mm
A = M4 (max. press-fit 1,2 Nm)
B = Bores min.Ø 6,5
C = for machine screws M4, DIN 7984 / DIN 6912 / DIN 84, EN ISO 1707 / EN ISO 7045

Static load capacity and moments of inertia of an area

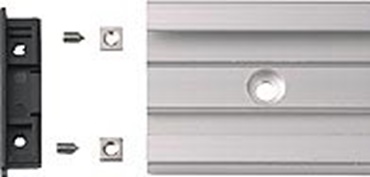

Optional:

End cap for rail,
Order no.  NSK-40
Xuất hàng trong vòng 24 giờ
Xuất hàng trong vòng 10 - 14 ngày làm việc
