drylin® N - Low profile linear guide system NK-02-17

DryLin® N low profile guide system rail

Order no. Max.
rail lengths		 a C4 A3 C5=C6 h h1 K1* ly lz Weight of rail Price / m
  [L max.]       Min. max.       [mm2] [mm2] [g/m]
drylin® N - Low profile linear guide system NK-02-17- Product Overview NS-01-17 2000 17 60 0 20 20/49,5 5,5 0,9 M3 1700 120 150 787.943 VND drylin® N - Low profile linear guide system NK-02-17- Product Overview
drylin® N - Low profile linear guide system NK-02-17- Product Overview NS-01-17-AR 2000 17 60 0 20 20/49,5 5,5 0,9 M3 1700 120 150 906.224 VND drylin® N - Low profile linear guide system NK-02-17- Product Overview
drylin® N - Low profile linear guide system NK-02-17- Product Overview NS-01-17-UNGEBOHRT 2000 17 60 0 20 5,5 0,9 M3 1700 120 150 705.400 VND drylin® N - Low profile linear guide system NK-02-17- Product Overview
Thêm về phần đã lựa chọn:
drylin® N - Low profile linear guide system NK-02-17- Product Overview 3D CAD
drylin® N - Low profile linear guide system NK-02-17- Product Overview Yêu cầu hàng mẫu miễn phí
drylin® N - Low profile linear guide system NK-02-17- Product Overview PDF
drylin® N - Low profile linear guide system NK-02-17- Product Overview Yêu cầu báo giá
drylin® N - Low profile linear guide system NK-02-17- Product Overview myCatalog

For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head

Drylin® low profile linear guide system NK-02-17

Order no. Designation Weight of carriage
    [g]
drylin® N - Low profile linear guide system NK-02-17- Product Overview NW-02-17 Carriage with threaded hole 1,7 112.693 VND drylin® N - Low profile linear guide system NK-02-17- Product Overview
drylin® N - Low profile linear guide system NK-02-17- Product Overview NW-02-27 Carriage 12,5 156.566 VND drylin® N - Low profile linear guide system NK-02-17- Product Overview
drylin® N - Low profile linear guide system NK-02-17- Product Overview NW-02-17-P Carriage with pretension 1,7 112.693 VND drylin® N - Low profile linear guide system NK-02-17- Product Overview
drylin® N - Low profile linear guide system NK-02-17- Product Overview NW-02-17-LLY Carriage with threaded hole floating bearing y-direction 1,7 112.651 VND drylin® N - Low profile linear guide system NK-02-17- Product Overview
drylin® N - Low profile linear guide system NK-02-17- Product Overview NW-02-17-LLZ Carriage with threaded hole floating bearing z-direction 1,7 112.651 VND drylin® N - Low profile linear guide system NK-02-17- Product Overview
drylin® N - Low profile linear guide system NK-02-17- Product Overview NW-02-17-LLYZ Carriage with threaded hole floating bearing y und z-direction 1,7 112.651 VND drylin® N - Low profile linear guide system NK-02-17- Product Overview
Thêm về phần đã lựa chọn:
drylin® N - Low profile linear guide system NK-02-17- Product Overview 3D CAD
drylin® N - Low profile linear guide system NK-02-17- Product Overview Yêu cầu hàng mẫu miễn phí
drylin® N - Low profile linear guide system NK-02-17- Product Overview PDF
drylin® N - Low profile linear guide system NK-02-17- Product Overview Yêu cầu báo giá
drylin® N - Low profile linear guide system NK-02-17- Product Overview myCatalog

Dimensions [mm] - guide carriages

Part No. H A C C2 K3 Spmin. DpØmin. Weight
  ±0,35             [g/m]
drylin® N - Low profile linear guide system NK-02-17- Product Overview NW-02-17 6 9,6 20 14 M3 2,5 5 1,7
drylin® N - Low profile linear guide system NK-02-17- Product Overview NW-02-27 9,5 14 34 20 0 0 0 12,5
drylin® N - Low profile linear guide system NK-02-17- Product Overview NW-02-17-P 6 9,6 20 14 M3 2,5 5 1,7
drylin® N - Low profile linear guide system NK-02-17- Product Overview NW-02-17-LLY 6 9,6 20 14 M3 2,5 5 1,7
drylin® N - Low profile linear guide system NK-02-17- Product Overview NW-02-17-LLZ 6 9,6 20 14 M3 2,5 5 1,7
drylin® N - Low profile linear guide system NK-02-17- Product Overview NW-02-17-LLYZ 6 9,6 20 14 M3 2,5 5 1,7
Thêm về phần đã lựa chọn:
drylin® N - Low profile linear guide system NK-02-17- Product Overview 3D CAD
drylin® N - Low profile linear guide system NK-02-17- Product Overview Yêu cầu hàng mẫu miễn phí
drylin® N - Low profile linear guide system NK-02-17- Product Overview PDF
drylin® N - Low profile linear guide system NK-02-17- Product Overview Yêu cầu báo giá
drylin® N - Low profile linear guide system NK-02-17- Product Overview myCatalog

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriagel
3. Entry of the rail length in mm
4. Selection of the carriage options
5.

Hint:

Detailed information can be found below in the drawings as well as in the below-mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.

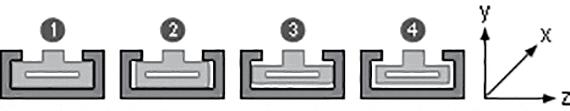

1

no floating bearing

2

Floating bearing in z-direction

3

Floating bearing in y-direction

4

Floating bearing in yz-direction

drylin® NK – complete set

Step 1

Enter the required number of carriages.

technical drawing
No. of carriages:

Static load capacity and moments of inertia of an area

A =bore min. Ø 5 mm
B = Depth for screw tightening
C = for machine screws M3
DIN 7984/DIN 6912/DIN 84
EN ISO 1707
Xuất hàng trong vòng 24 giờ
Xuất hàng trong vòng 10 - 14 ngày làm việc
