Absolute freedom from lubricants
Corrossion-resistant
Continuously clamped

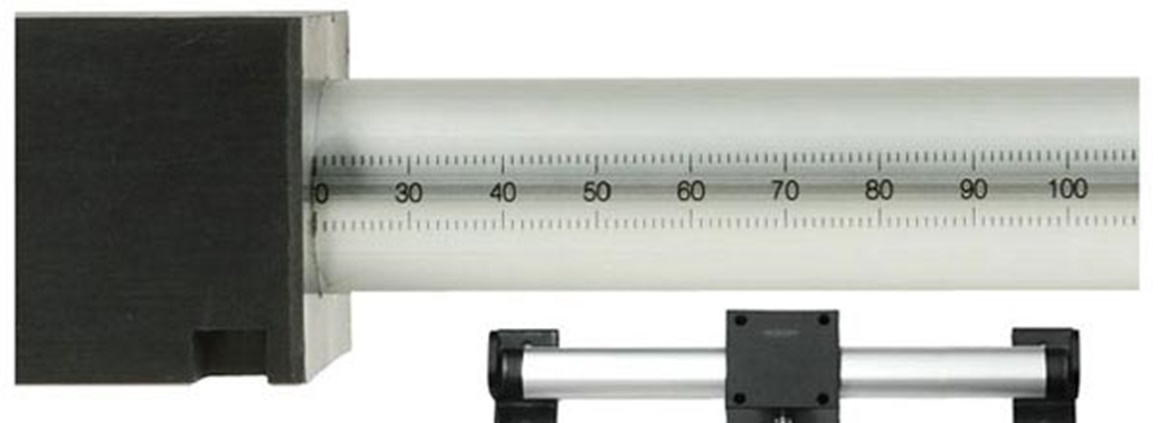

Available with and without scale
Three stroke lengths ex stock: 200, 400 and 600 mm
Form: |
|
| Technical data | |||||
|---|---|---|---|---|---|
| F radial | N | 300 | |||
| Max. extension at maximum load | mm | 66 | |||
| Max. extension at nominal load 100 N | mm | 200 | |||
| Max. shifting force without load | N | 10 | |||
| Max. holding force | N | 100 | |||
| Max. stroke length | mm | 850 | |||
| Part no. with scaling | Without spindle
With spindle |
Stroke length
[mm] |
|
|---|---|---|---|
| SETM-25-AWM-200-SC | without lead screw | 200 | |
| SETM-25-AWM-400-SC | without lead screw | 400 | |
| SETM-25-AWM-600-SC | without lead screw | 600 | |
| SET-25-AWM-200-SC | With trapezoidal lead screw 10x2 | 200 | |
| SET-25-AWM-400-SC | With trapezoidal lead screw 10x2 | 400 | |
| SET-25-AWM-600-SC | With trapezoidal lead screw 10x2 | 600 |
