drylin® T - Low-profile guide

drylin® T low profile linear guide system

drylin® T low profile linear guide system - linear systems in compact design, four installation sizes, lubrication-free and maintenance-free

Maintenance-free, dry operation

Robust sliding carriage, not adjustable

Carriage body made of zinc

Wear resistant and interchangeable gliding elements made of iglidur® J (or iglidur® J200 for TW-04-07)

Hard-anodised aluminium rail

Low installation height

Corrosion-free

Hole pitches symmetrical C5 = C6

Dimensioned identical to low profile recirculating ball guide systems

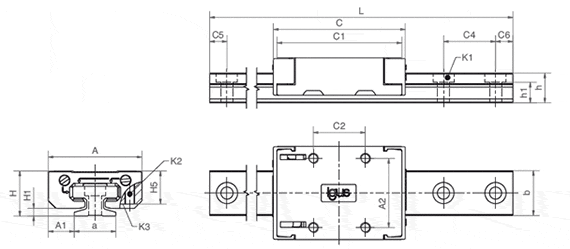

drylin® T low profile linear guide as adjustable version, size 12

drylin® T low profile linear guide as adjustable version of size 12 in 8 levels

In size 12, the bearing clearance in miniature carriages TWE-04-12 can be easily adjusted with a screwdriver.

Adjustable bearing clearance

Lubricant- and maintance-free

High corrosion resistance through E-coating

Quiet running

Compact design

Ordering of a complete system

Configuration in few steps:

1. Selection of the installation size
2. Selection of the number of carriages per rail
3. Entry of the rail length in mm
4. Selection of the floating bearing option

Hint:

Detailed information can be found in the drawings and tables above, as well as in the below-mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.

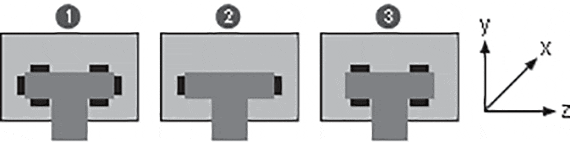

1

no floating bearing

2

Floating bearing in y-direction

3

Floating bearing in z-direction

drylin® TK-04 – complete set

Step 1

Select the installation size of the carriage.

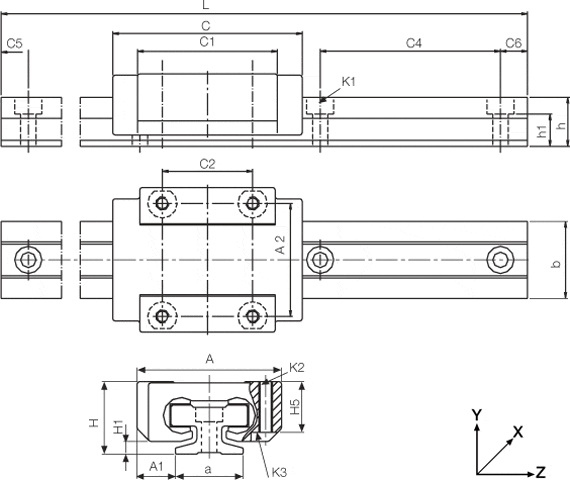

technical drawing
Installation size of the carriage:

T low profile guide rails

a [mm]:



DryLin® T low-profile guide rails

Order no.   Weight L
max.		 a
-0,2		 b C4 C5
min.		 C5
max.		 C6
min.		 C6
max.		 h h1 K1* ly lz Wby Wbz Price / m
    [kg/m] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]       [mm4] [mm4] [mm3] [mm3]
drylin® T - Low-profile guide TS-04-07-UNGEBOHRT 1.095.089 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TS-04-09-UNGEBOHRT 1.129.072 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TS-04-12-UNGEBOHRT 1.227.139 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TS-04-15-UNGEBOHRT 1.317.465 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TS-04-07 NEW 0,08 2000 7 8 15 5 12 5 12 5,5 3,7 M2 131 90 32 29 1.216.815 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TS-04-09 0,11 2000 9 9,6 20 5 14,5 5 14,5 6,3 4,6 M2 252 169 52 49 1.254.234 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TS-04-12 0,2 2000 12 13 25 5 17 5 17 8,6 5,9 M3 856 574 132 120 1.363.487 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TS-04-15 0,33 3000 15 17 40 10 29,5 10 29,5 10,8 7 M3 2420 1410 285 239 1.463.706 VND drylin® T - Low-profile guide
Thêm về phần đã lựa chọn:
drylin® T - Low-profile guide 3D CAD
drylin® T - Low-profile guide Yêu cầu hàng mẫu miễn phí
drylin® T - Low-profile guide PDF
drylin® T - Low-profile guide Yêu cầu báo giá
drylin® T - Low-profile guide myCatalog

*For screw DIN 912
For unbored rails please indicate "Unbored" in the remark.

T low profile carriage

H [mm]:



DryLin® T low-profile carriage

Order no.   Weight H
±0,2		 A
±0,2		 C
±0,3		 A1
±0,35		 A2 C1 C2 H1
±0,35		 H5 K2** Tightening
torque
max.		 K3*
    [kg] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   [Nm]
drylin® T - Low-profile guide TW-04-07 NEW 0,008 8 17 23 5 12 21 8 1,5 0 M2 0 334.204 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TW-04-07-LLZ 0,008 8 17 23 5 12 21 8 1,5 0 M2 0 334.204 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TW-04-09 0,017 10 20 29 5,5 15 18 13 1,7 7,2 M2 0,25 (M2) 440.447 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TW-04-09-LLY 0,017 10 20 29 5,5 15 18 13 1,7 7,2 M2 0,25 (M2) 440.359 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TW-04-09-LLZ 0,017 10 20 29 5,5 15 18 13 1,7 7,2 M2 0,25 (M2) 440.359 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TW-04-12-LLY 0,034 13 27 34 7,5 20 22 15 2,2 9,5 M3 0,5 M2 (M3) 536.190 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TW-04-12-LLZ 0,034 13 27 34 7,5 20 22 15 2,2 9,5 M3 0,5 M2 (M3) 536.190 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TW-04-12 0,034 13 27 34 7,5 20 22 15 2,2 9,5 M3 0,5 M2 (M3) 535.930 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TW-04-15 0,061 16 32 42 8,5 25 31 20 2,8 11 M3 0,5 M2 (M3) 661.527 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TW-04-15-LLY 0,061 16 32 42 8,5 25 31 20 2,8 11 M3 0,5 M2 (M3) 661.569 VND drylin® T - Low-profile guide
drylin® T - Low-profile guide TW-04-15-LLZ 0,061 16 32 42 8,5 25 31 20 2,8 11 M3 0,5 M2 (M3) 661.569 VND drylin® T - Low-profile guide
Thêm về phần đã lựa chọn:
drylin® T - Low-profile guide 3D CAD
drylin® T - Low-profile guide Yêu cầu hàng mẫu miễn phí
drylin® T - Low-profile guide PDF
drylin® T - Low-profile guide Yêu cầu báo giá
drylin® T - Low-profile guide myCatalog

*For screw DIN 912
** Thread
LLy for a carriage with floating bearing in y-direction
LLz for a carriage with floating bearing in z-direction

Assembly instruction drylin® TWE
Assembly_DryLin_TWE_LowProfile_GB.pdf
