drylin® W measuring system

With additional freely positionable readout display

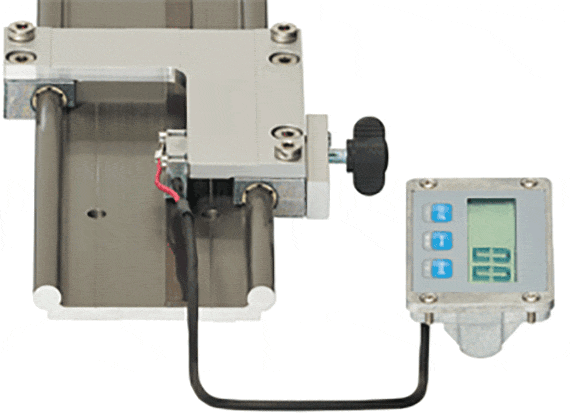

drylin W measuring system
drylin W measuring system 1. Energy chain 047.10.028.0.xxx not included
2. Options for mounting the external display
The reading of the measured data at the desired position allows the ideal ergonomic design in the work environment, thereby reducing the risk of reading errors. The complete system (sensor/readout display/magnetic tape/linear guide) is delivered ready for use. The linear guide drylin® W is lubrication-free and dirt-resistant.

External display

Any position

Suitable for aluminium design profiles

Adaptation horizontal or vertical

Lubrication-free


Typical application areas:Packaging industry, profile processing, cutting tube to length

Dimensions measuring system [mm]

Order number A C A2 C2 K2 H2 Am Bm Tm
  Width Length       ±0,17
WKMEDR(L)*-10-80-10-… 107 100 94 87 M6 24 82 51 25  Enquiries
* Assembly right (R) or left (L) from guide carriage

Dimensions-Display incl. support [mm]

  Ah Bh Ch Sh Kh Th
drylin® W measuring system with positionable display WMY-0301 61 125 40 14 5,4 22 346.593 VND drylin® W measuring system with positionable display
drylin® W measuring system with positionable display WMY-0302 94,5 92 70 14 5,4 22 346.593 VND drylin® W measuring system with positionable display
Thêm về phần đã lựa chọn:
drylin® W measuring system with positionable display 3D CAD
drylin® W measuring system with positionable display Yêu cầu hàng mẫu miễn phí
drylin® W measuring system with positionable display PDF
drylin® W measuring system with positionable display Yêu cầu báo giá
drylin® W measuring system with positionable display myCatalog

Technical data

Technical data
Measuring principle incremental, with absolute value function through battery buffer
Display Lowest Power LCD with integrated sensor, independent of network
Display accuracy max. 0.1 mm
Repeat accuracy ± 1 digit
Display/Display range -99 999 …+99 999
Function Incremental measurement and reset function
Direct input offset value
Supply Integrated battery, up to 10 years lifespan
Magnetic sensor Firmly connected
Bearing Type Installation housing
Connector Housing Zinc die cast
Protection class IP20 Entire device
IP60 Display screen
Operating temperature 0…+60°C
Air humidity 95% rh condensation inadmissible
Speed (travel) Max. 3,5 m/s
Xuất hàng trong vòng 10 - 14 ngày làm việc
