Protected magnetic tape
Attachment options via slot nuts
Hand clamp on carriage
Unsupported attachment
Profile AWMQ-20 max. length 1.500 mm

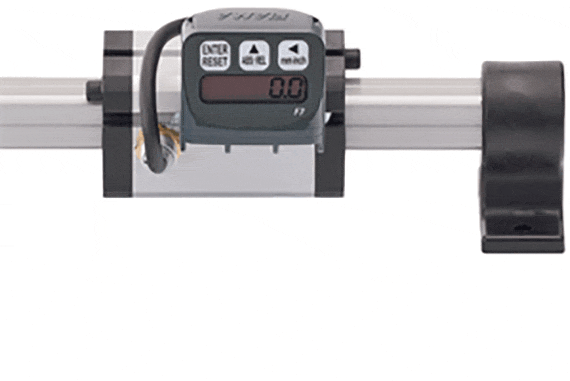

Space-saving sensor integrated in the carriage
| Part number | M max. | L | B | B1 | B2 | H | H1 | E | Q | ts | f1 | f2 | A | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [Nm] | Shaft end support + carriage + stroke | h7 | |||||||||||||
| QKM-01-20 | 10 | 28 + 94 | 28 | 94 | 45 | 58 | 155 | 46 | 20 | 6,2 | 4,5 | 15,5 | 33 | Theo yêu cầu | |
| QKM-02-20 | 10 | 28 + 94 | 28 | 94 | 45 | 58 | 92 | 46 | 20 | 6,2 | 4,5 | 15,5 | 33 | Theo yêu cầu |
| Measuring indicator specifications | ||
|---|---|---|
| Measuring principle | incremental, with absolute value function through battery buffer | |
| display | LCD display 7.5 mm digit height | |
| Display accuracy | max. 0,1 mm | Display/Display range | -99 999 …+99 999 |
| Function | Digit direction, decimal point, unit of measurement (mm,inch), preset activation | |
| Supply | Battery 1/2 AA, 3.6 V integrated, service life of up to 4 years | |
| Magnetic sensor | securely connected (external) | Bearing Type | Installation housing |
| Connector Housing | Plastic | |
| Protection class | IP54 display IP67 sensor |
|
| Operating temperature | 0…+50°C | |
| Air humidity | 35-85% | |
| Speed (travel) | max. 2,5 m/s | |
| Display keyboard | 3 function buttons | |
