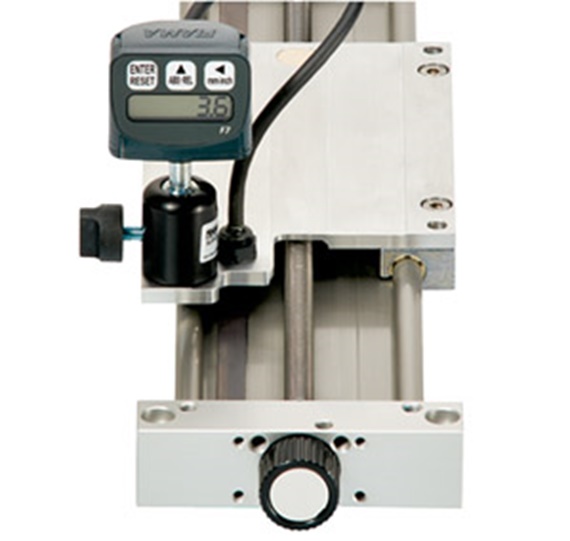

drylin® SLW with digital measuring system

Mains independent battery power

The proven drylin® SLW linear module in installation size 1080 can be equipped with a new digital measuring system and adapts to any requirements in an ideal way. The stroke and measuring length can be determined individually, the moving display can optionally be set to metric as well as inch, and the 0 point can be set to any position. In addition, the count direction can be set manually and the fixable ball head allows an ergonomic reading direction.

Space-saving sensor integrated in the carriage

Operation without mains supply

Integrated magnetic tape

Lubricant-free operation

Extensive accessories available

Typical applications:Format adjustments, stop dog adjustments

Ready to install systems for external data output

Delivery program:

Dimensions [mm]

Ordering number	A	Al	H	E1	E2	E3	E4	l	lt	tk	ts	s	ha	d2	h3	b
SLWM-1080	108	192	29	94	94	137	150	236	22	11	6,8	6,6	14,5	TR10x2	90	50	24.286.109 VND

Thêm về phần đã lựa chọn:

3D CAD

Yêu cầu hàng mẫu miễn phí

PDF

Yêu cầu báo giá

myCatalog

Technical data
Multifunctional display	Programmable (password protected)
Variable configuration	Count direction, decimal point, unit (mm,inch), optional activation of PRESET value
Resolution	0,1 mm
Max. speed	2,5 m/s
Display area	-99999, 99999
Operation	Actual or target value
Power supply	Battery 1/2 AA, 3,6 V
Service life of battery	4 years
Battery replacement	On the front possible, in line with the parameters when installed
Operating temperature	0-50°C
Display keyboard	3 function buttons
Display digit height	7,5 mm
Housing protection class	Display IP54, Sensor IP67
Electromagnetic compatibility	20004/108/CE

Measuring indicator specifications
Measuring principle	incremental, with absolute value function through battery buffer
display	LCD display 7,5 mm digit height
Display accuracy	max. 0,1 mm
Display/Display range	-99 999 …+99 999
Function	Digit direction, decimal point, unit of measurement (mm,inch), preset activation
Supply	Battery 1/2 AA, 3,6 V integrated, service life of up to 4 years
Magnetic sensor	securely connected (external)
Bearing Type	Installation housing
Connector Housing	Plastic
Protection class	IP54 display IP67 sensor
Operating temperature	0…+50°C
Air humidity	35-85%
Speed (travel)	max. 2,5 m/s
Display keyboard	3 function buttons
