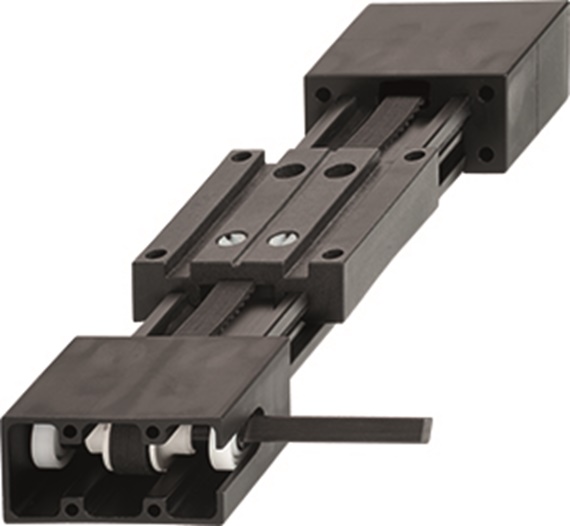

The first toothed belt axis fully made of plastic

ZLW Carbon

Lubrication-free & 100% metal-free

The combination of tribologically optimised drylin® W linear guide made of carbon with drytech® polymers in the carriage and deflection make the toothed belt axis ZLW-0630-P the first completely metal-free toothed belt axis. Due to the fully solid plastic construction within the support ends by the use of xiros® ball bearings (with plastic or glass balls), the system is extremely lightweight and completely maintenance-free, because all bearings run dry, free of lubrication.


Typical application areas:Handling, automation, X-ray systems, high-frequency systems, ...
Toothed belt axis ZLW Carbon
Connecting dimensions Connecting dimensions

Dimensions [mm]

Part No.** A
-0,3		 AI H E2
±0,15		 E3
±0,15		 I R
±0,15		 f lt
±0.3		 sg ha hc lz l2 d2
4kt
ZLW-0630-P 54 60 30 45 51 144 30 2 42 M4 14 13 20 20 6 Theo yêu cầu The first toothed belt axis made from plastic
Thêm về phần đã lựa chọn:
The first toothed belt axis made from plastic 3D CAD
The first toothed belt axis made from plastic Yêu cầu hàng mẫu miễn phí
The first toothed belt axis made from plastic PDF
The first toothed belt axis made from plastic Yêu cầu báo giá
The first toothed belt axis made from plastic myCatalog

** These values were measured at the carriage with maximum permissible load in horizontal installation position

Connecting dimensions

Part number X E
±0,2		 AP
-1.0		 Lp dp n nb nw nh T1
±0,25		 T2
±0,25		 d
ZLW-0630-P variabel 40 52 15 5,5 0 0 0 7 20 21 3,2
Thêm về phần đã lựa chọn:
The first toothed belt axis made from plastic 3D CAD
The first toothed belt axis made from plastic Yêu cầu hàng mẫu miễn phí
The first toothed belt axis made from plastic PDF
The first toothed belt axis made from plastic Yêu cầu báo giá
The first toothed belt axis made from plastic myCatalog

Technical data

Weight Weight Max. stroke length* Transmission Tooth profile Belt drive
without stroke 100 mm stroke material -width -tension
[kg] [kg] [mm] [mm/rev] [mm] [N]
Basic 02 P 0,3 0,08 1.000 54 HTD 3M Neoprene with GF 9 25

* Longer stroke lengths upon request after technical consultation and review

More information:

Thời gian giao hàng khi yêu cầu
