Coating overhead with Fanuc P-350

This application is a coating plant for aircraft parts. In this particular case around the wings of the aircraft.
The system can move over a length of 59 m and a width of 22.3 m. In addition to the 3D triflex R chain, a circular trough module was also installed on axis 2 of the robot, which allows 360° rotation.

Company: Aerobotix
Contact person: Mr. Jared Bishop
Country: USA
Website:
Go to RSE retraction system

Problem

In an application for coating parts, special care must be taken to ensure that no parts come into contact with the  workpiece to be coated. Therefore the solution with a loose chain on the robot was not an option from the very beginning. A solution that stays close to the robot and provide maximum motion for axes 3-6 was required.

  • Working overhead necessarily requires a retraction system
  • Coating plants require compact design

Solution

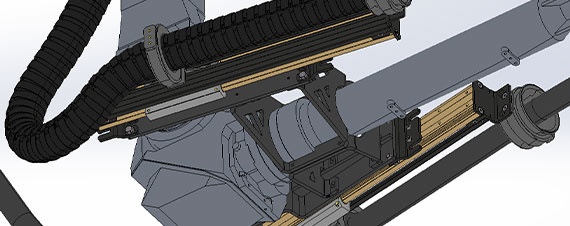

By installing the retraction system (TR.RSE.70) together with the TRC e-chain (TRC.70.110.0), all cables could be guided safely and, above all, close to the robot.
The Fanuc P-350 retains all its mobility, which is further increased by the [link pagenr="2899" title="circular movement"] installed on axis 2.
Application photo 2
Application photo 3
