Series 094

Here you can configure your e-chain system? individually. All entries and changes are taking over to the part list which is situated at the end of the page.

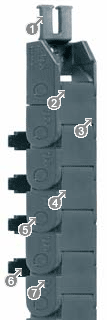

Series 094 chain, openable along the inside

1. Mounting bracket with strain relief option
2. Outside closed
3. Dirt-repelling outer contour
4. One-piece chain link type
5. Small pitch for quiet, smooth running
6. Injection-moulded crossbar, openable lid on inside with integral hinge
7. Outer height ha = 19,3 mm

Available Inner widths Bi: 10
Available bending radii Bi: 38, 48

Series 094 is suitable for the following types of applications:

Vertical: Hanging applications, standing applications
Horizontal: Unsupported applications Ём 1 m
Circular movement: Rotating application possible, if necessary with reworking (from 180Ёу rotation angle mechanical reworking is always necessary)

When to use Series 094

When a small e-chain? with 15?mm inner height and smallest bend radii is required
Inner width 10mm
For unsupported lengths up to 1.0m and fill weights up to 0.7kg/m
Quiet operation due to small pitch
If an e-chain? with integral hinge is required
When easy filling with connectorised cables is required

When not to use Series 094

When an enclosed e-tube is required
Series R09 Zipper tube

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
* The required clearance height is HF = H + 15 mm (at 0.3 kg/m fill weight), which should be observed in all types of applications. Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.

A=Moving end, B=Fixed end
Pitch: 20mm
Chain links per m: 50
Travel: S
Chain length?=?S/2?+?K

Unsupported length

The unsupported length depends on fill weight
X axis: unsupported length in m FLB/FLG
Y axis: fill weight in kg/m
Lower scale: travel S in m
FLB = unsupported with permissible sag
FLG = unsupported with straight upper run

Reference example A:
fill weight = 0.7 [kg/m]
unsupported length FLB = 0.63 m
travel = 1.26 m

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain? Expert call Service life calculation PDF file Ask the product expert

Designing with igus?

Assembly instructions

Other installation types

Technical specifications

Strain reliefs

Mounting brackets

Plastic - one-sided

unassembled	assembled

080.10.12 - 080.20.12: Only middle holes

One-piece mounting bracket - secure fit

Available with or without tiewrap plates


:
Part No. :
A [mm]:
B [mm]:
Number of teeth :

Part List

Personal contact

GToB Imprint General notes Data protection declaration

<dd id='gx7b0'></dd>

hanging (max.) [m]	0
standing (max.) [m]	0
max. vertical, long travels [m]	0
circular	with reworking

Material of chain links	igumid NB
Min. permissible temperature [ЁуC]	-40
Max. permissible temperature [ЁуC]	80
Gliding speed (max.) [m/s]	3
Max. gliding speed [m/s2]	10
Speed FLG max. [m/s]	20
Speed FLG max. [m/s2]	200
Speed FLB max. [m/s]	3
Speed FLB max. [m/s2]	6
Flammability class of chain link	UL 94 V2
