E2.10 series

Here you can configure your e-chain system? individually. All entries and changes are taking over to the part list which is situated at the end of the page.

Series E2.10 - Chain, openable along outside

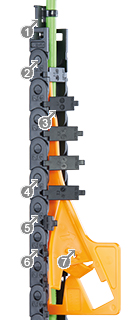

1. Universal: mounting bracket with strain relief option, Quick flange optional
2. Strong: Large, assembly-friendly pins
3. Cable-friendly: Very smooth contours, ideal cable care
4. Low noise: Built-in brake reduces noise
5. Robust: Angular stop-dog system for high fill weights
6. Options: non-openable or openable along the inner and outer radius from both sides
7. Each new generation openable igus? E2 micro is accompanied by an e-chain? opener for quick opening
E2 micro chain opener video

Series E2.10 is suitable for the following types of applications:

Horizontal: Unsupported applications Ём 1.5 m Travel
Vertical: Hanging applications, standing applications
Circular movements: Rotating applications possible

When to use Series E2.10

When a small e-chain? with 10mminner height and small pitch is required
For inner widths up to 50mm
For unsupported lengths up to 0.75m and fill weights up to 0.7kg/m
When a large range of modular components is required
When long unsupported lengths and high fill weights are required in the case of a small e-chain?
Quiet operation due to small pitch

When not to use Series E2.10

When an enclosed e-tube is required
Series R07 Zipper e-tube
When torsional strength is very important
Series 06 E2 micro

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
* The required clearance height is HF = H + 10mm (at 0,2kg/m fill weight) Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.

A=Moving end, B=Fixed end
Pitch: 20mm
Chain links per m: 50
Travel: S
Chain length?=?S/2?+?K

Unsupported length

The unsupported length depends on fill weight
X axis: unsupported length in m FLB/FLG
Y axis: fill weight in kg/m
Lower scale: travel S in m
FLB = unsupported with permissible sag
FLG = unsupported with straight upper run

Reference example A:
fill weight = 0.5 [kg/m]
unsupported length FLB = 0.55 m
travel = 1.1 m

Diagram values provisional!
Please call us.

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain? Expert call Service life calculation PDF file Ask the product expert

Designing with igus?

Assembly instructions

Other installation types

Technical specifications

Strain reliefs

Interior separation

Option 1: Separators

Product range


unassembled	assembled
Per . chain link

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:

Option 1 - separators
Separators can be placed anywhere in the chain's cross-section as interior separation for the e-chain? - as standard, separators should be fitted every 2nd chain link!

Note: For the E2C.10, install the interior separation before assembling the e-chain?!

Standard separator - E2.10.2
For easy vertical separation in energy chains. Separator can be positioned at any position in the cross-section. No snap-in option, moves freely.

Notch separator for notch crossbar E2.10.5 - Locks in securely in 2.5 mm increments

Notch separator for exact positioning in e-chains?. Recommended for side-mounted applications. Abrasion-optimised, cable-friendly design.

Mounting brackets

Plastic - locking

Plastic - Pivoting on one side

Plastic - Pivoting on both sides

unassembled	assembled

Locking connections

For extreme accelerations
and high speeds

If the vertical space is restricted to the
dimension HF

Various mounting options on
the fixed end and/or moving end


:
Part No. :
A [mm]:
B [mm]:
Number of teeth :

unassembled	assembled

Standard

For tight installation spaces

Available with or without tiewrap plates

Corrosion-free

Various mounting options on
the fixed end and/or moving end

One end pivoting: only ever to the inner radius - regardless if mounted to A1 to A4!


:
Part No. :
A [mm]:
B [mm]:
Number of teeth :

unassembled	assembled

Standard

For tight installation spaces

Available with or without tiewrap plates

Corrosion-free

Various mounting options on
the fixed end and/or moving end


:
Part No. :
A [mm]:
B [mm]:
Number of teeth :

Part List

Personal contact

GToB Imprint General notes Data protection declaration
