iglidur® UW500 | For hot liquids and fast, continuous movements
iglidur® UW500 was developed for underwater applications, where higher temperatures up to +250°C occur. In addition, the plain bearings will function in chemicals which would act as a lubricant.Typical applications

Automotive
Glass industry
Food industry
Machine tools
Heavy machinery / Plant construction


Find more applications here:
Industry solutions


When to use it? When plain bearings need to be used in liquids For high speeds For high temperatures When a high chemical resistance is required

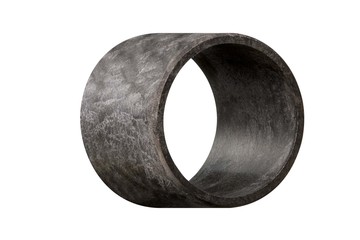

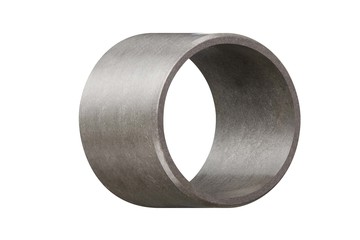

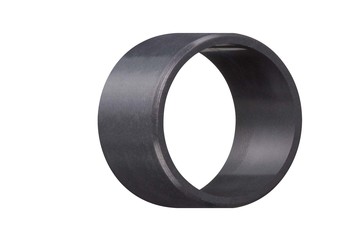

When not to use it? When a low-cost underwater plain bearing for the normal temperature range is required iglidur® UW, sleeve bearing, mm When looking for a low cost underwater bearing for infrequent operations iglidur® H, sleeve bearing, mm When a cost-effective universal bearing is sought iglidur® G, sleeve bearing, mm

Use our filter options to find the suitable product

Tolerances and measuring system
The installation dimensions and tolerances of the iglidur® plain bearings depend on the material and wall thickness. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be installed with a smaller bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods

Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter is only adjusted to the appropriate tolerance after pressing into the housing. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearings. Axial or radial movements in the housing are reliably avoided.
iglidur® - assembling, gluing, machining
