B17 series

Here you can configure your e-chain system? individually. All entries and changes are taking over to the part list which is situated at the end of the page.

Series B17 每 Chain, openable along the outer radius

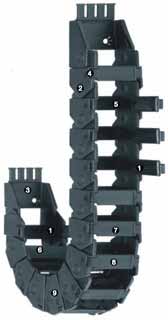

1. Can be opened along the outer radius with plastic hinge (Series B17) and/or can be opened/closed in inner radius (Series B17i) - the two can be combined!
2. Small pitch for quiet, smooth running
3. Mounting bracket with integrated strain relief
4. Dirt-repellent outer contours
5. Small e-chain?, very high on the inside
6. Interior separation system available
7. Quickly openable option
Series 17 Zipper
8. Closed, quickly openable option
Series R17 Zipper tube
9. Where torsional movements are involved
Series E16 easy chain?

Available inner widths Bi: 15 to 100 mm
Available bending radii R: 48 to 125 mm
Pitch: 30,5 mm per link = 33 links/m

Series B17 is suitable for the following types of applications:

Vertical: Hanging applications, standing applications
Horizontal: Unsupported applications ≒ 1 m
Circular movement: Rotating applications possible, may require machining (machining rework is always required from rotation angles of 180～)

When to use Series B17

If an e-chain? with a 32mm inner height is required
For inner widths up to 100mm
For unsupported lengths up to 1.0m and fill weights up to 1.5kg/m
If a very small e-chain? with larger inner height is required
If an e-chain? that opens into two parts is required
When easy filling with connectorised cables is required
If interior separation is required

When not to use Series B17

When quick opening of the links is necessary
Series 17 Zipper

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
* The required clearance height is HF = H + 25 mm (at 1.5 kg/m fill weight), which should be observed in all types of applications. Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.

A=moving end, B=fixed end
Pitch: 30.5 mm
Chain links per m: 33
Travel: S
Chain length?=?S/2?+?K

Unsupported length

The unsupported length depends on fill weight
X axis: unsupported length in m FLB/FLG
Y axis: fill weight in kg/m
Lower scale: travel S in m
FLB = unsupported with permissible sag
FLG = unsupported with straight upper run

Reference example A:
fill weight = 0.75 [kg/m]
unsupported length FLB = 0.75 m
travel = 1.50 m

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain? Expert call Service life calculation PDF file Ask the product expert

Designing with igus?

Interior separation possible

Mounting brackets with and without a clamp

7 widths, 5 bend radii

Assembly instructions

Other installation types

Technical specifications

Strain reliefs

Interior separation

Option 1: standard

Product range


unassembled	assembled
Per . chain link

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Width [mm]:
Part No. :

Pc. Add to part list

Online Services:

Option 1: Standard

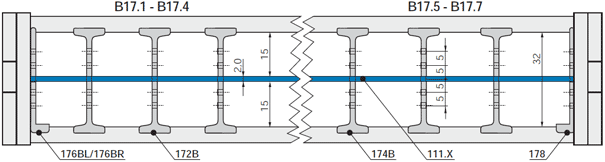

Separators can be placed anywhere in the chain's cross-section to divide the interior of the e-chain? - as standard, separators should be fitted every 2nd chain link!

171B - Slotted separator for B17.1 to B17.4
Vertical separation in e-chains?. The slot allows basic vertical/horizontal shelving arrangements.

175BL - Side plate, left for B17.1 to B17.4
Side plate (left) for use with full-width shelf 110.X and slotted separator 171B.

175BR - Side plate, right for B17.1 to B17.4
Side plate (right) for use with full-width shelf 110.X and slotted separator 171B.

173B - Slotted separator for B17.5 to B17.7
Vertical separation in e-chains?. The slot allows basic vertical/horizontal shelving arrangements.

177 - Side plate for B17.5 to B17.7
Side plate for use with full-width shelf 110.X and slotted separator 173B.

110.X - Full-width shelf
Recommended if many small cables with similar or the same diameters are used. For full-width separation. Full-width shelves can be arranged in steps of 5mm on 5 levels.

Mounting brackets

Plastic - one-sided

unassembled	assembled

117.1.12.P(Z): only middle holes
117.2.12.P(Z) - 117.7.12.P(Z): only outer holes

One-piece mounting bracket - secure fit

Corrosion-free

Can be fabricated

Mounting surfaces, fits inside/outside

Available with or without tiewrap plates


:
Part No. :
A [mm]:
B [mm]:
Number of teeth :
No. of teeth [mm]:

Part List

Personal contact

GToB Imprint General notes Data protection declaration

hanging (max.) [m]	10
standing (max.) [m]	2
max. vertical, long travels [m]	20
circular	with reworking

Material of chain links	igumid G
Min. permissible temperature [～C]	-40
Max. permissible temperature [～C]	120
Gliding speed (max.) [m/s]	3
Max. gliding speed [m/s2]	10
Speed FLG max. [m/s]	20
Speed FLG max. [m/s2]	200
Speed FLB max. [m/s]	3
Speed FLB max. [m/s2]	6
Flammability class of chain link	VDE 0304 IIC UL94 HB
